Horizontal Glass Washing Machine
WX1600C
Insulating Glass Equipment
Washing and drying glass before processing; brush washing, water-absorbing rollers and hot-air drying with horizontal conveying.
Key Features
- Brush washing with speed-adjustable conveying
- Absorbing sponges with hot-air drying
- Stainless water tank and washing chamber
Machine shown for reference; final configuration, tooling and parameters are confirmed per agreed scheme.
Technical Specifications
| Power Supply | 380 V / 50 Hz; 220 V optional |
|---|---|
| Input Power | 7.5kW |
| Max. Glass Size | 1600×2500mm |
| Min. Glass Size | 350×300mm |
| Washable Glass Thickness | 3-8mm |
| Washing Speed | 0-3m/min |
| Overall Dimensions | 2650×2000×1100mm |
| Weight (approx.) | 500kg |
More in Insulating Glass Equipment
1.6 m Glass Washing & Hot-Pressing Combined Machine
Insulating Glass · 设备配置按加工需求确认
Combines glass washing and hot pressing in one machine; applicable glass sizes, process route and configuration confirmed per production needs.
View Details

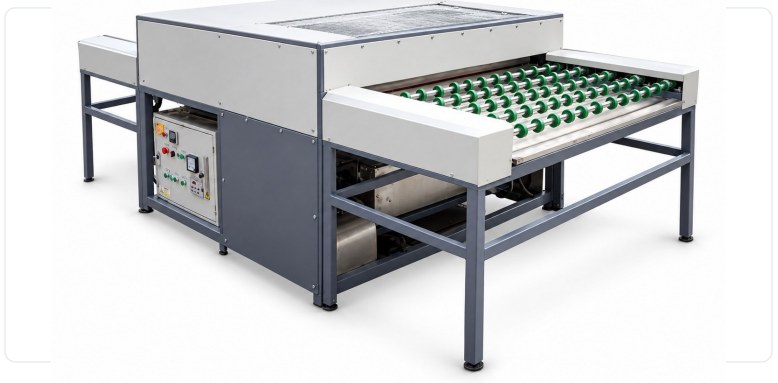

Horizontal Insulating Glass Hot Press
Insulating Glass · WRY1500
Heating and rolling of compound-sealant insulating glass; conveying speed and temperature adjustable to process needs.
View Details

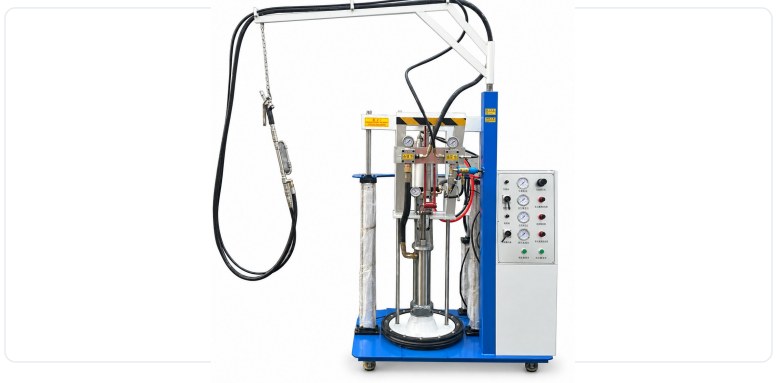

Two-Component Sealant Sealing Machine
Insulating Glass · STJ05
Metering and mixing of two-component sealant for insulating glass sealing; components A and B supplied separately and mixed at the set ratio.
View Details

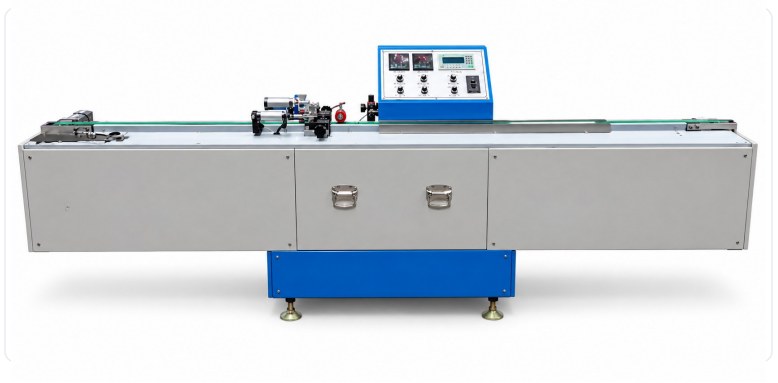

Butyl Sealant Coating Machine
